ZH- craft beer brewing equipment
Applications area: Beer Bars, Hotels, Restaurants etc.
The whole beer equipment is consisted of Mash system,Fermentation system,Refrigeration system,Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.
Simple operation ,PLC automatic control system ,PLC semi-automatic control system.
Equipments characteristics: small investment.quick effectiveness , high quality , lower prices , the investment
repayment is fast , the service life of equipment is long , easy operation , lower cost.Strong technical force.
At the same time if you have requirements, we could design and produce the products you need!
Beer equipment list
| 1 | malt milling system | malt miller machine grist case |
| 2 | Sistema del puré | Mash tank/lauter tank
Boiling tank/whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger |

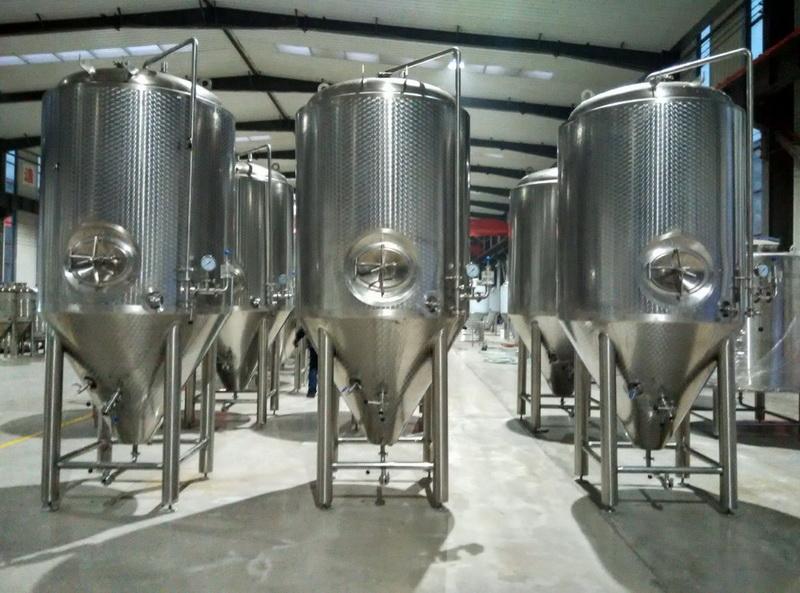

| 3 | Fermenting system | Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on |
| 4 | Cooling system | Ice water tank
Refrigerating unit
Ice water pump |
| 5 | CIP cleaning system | disinfection tank & alkali tank &cleaning pump etc. |
| 6 | Controller | Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on. |
| 7 | Kegging system | kegging system ( keg washer and keg filler machine), the control system brand is Siemens. |
Product features:
1. Appearance clean and generous and the equipment is bright;
2. Good insulation effect:,The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;
3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;
4. Low energy consumption: environmental protection, energy saving, low powerconsumption.
Mash system:
System is mainly composed by mash/lauter tun, filter tank, boiling pot, whirlpool tank, hops adding equipment etc.The main body of mash tun, mash copper system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding and other technology.
CIP Cleaning System
CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.
Cooling System
Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.
Technical parameters:
1.Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 75-100MM.
2.Manhole: Side manhole or top manhole
3.Design pressure 3bar, Working pressure: 1.5bar;
4.Bottom design: 60degree cone for easy to exist yeast.
5.Cooling method: Dimple cooling jacket
6.With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, CO2 adding device, sampling valve, breath valve, Ice water solenoid valve, thermometer, etc.
7.Surface protection, weld slinging band with stainless steel leg, adjustable bolt to adjust leg height;
8. Argon arc welding, Inside and outside the polishing, No welding corner to ensure the quality of the fluid
Shandong Zunhuang Brewing Equipment Co., Ltd
Shandong Zunhuang Brewing Equipment Co., Ltd is the domestic integrated industrial and trade comprehensive enterprise dedicated in research, manufacturer, development, sales and after sale service, until now have the 16 years produce experience, company focuses on beer system project that refer to fruit wine equipment, white spirit and alcohol equipment etc, corollary equipment.
Our company purpose: “Quality first, customer highest”, use the short period provide direct and comprehensive service, and improve the products’ valve and market competitive.
Packaging
1. Ocean shipment,railway shipment,express delivery.
2. No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.
3. And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.
4. We packed the goods to meet the transport distance, shock, rust and anti-handling requirements damaged before shipping, to ensure the safe transport of goods to reach the buyer designated location before it is shipped.
