50L one set of beer brewing equipment 15 gallon for brewhouse sus 304
ZH-50L Beer Brewing Equipment
We are the beer brewing equipment manufacturer in China, all of our products have passed CE and ISO certification.Mainly supply 50L-5000L beer brewing system for brewery, pub, restaurant and home brewing amateur. If you have a good idea about start a brewery, and you don't know what to do in the process, you are welcome to communicate with our experienced sales staff. If you are looking for the most reasonable price, you are also welcome to contact us for the best quote.
Product list
| Shandong Zunhuang Brewing Equipment Co., Ltd. |
| 50L Brewery Project |
| Equipment | Detail |
| 50L Beer Brewing System | Malt milling machine |
| 50L Brew house |
| Fermentation tank |
| Refrigerating unit + ice water tank |
| |
| Control system(control mash system, fermenter, cooling and control of various pumps) |
| |
| Spare parts |
| Packaging |
1. Malt Milling
1. Material: Carbon steel
2. Motor power: 0.75KW
2. Mash System
1. Total volume: 80L, effective volume: 50L；sus 304
2. Size (mm): φ600×600
3. Heating type: electrical heating
4. Top design: mobile design, thickness 2mm
5. Tank design: cylinder
6. Tank thickness: inner container 2mm, outer 1.5mm
7. Filtration type: natural differential pressure filtration, filter plate, inter space 0.75mm, sanitary filtration sight glass
8. Temperature measuring method: PT100 platinum resistor
9. Insulation material: PU foam, thickness 75mm.

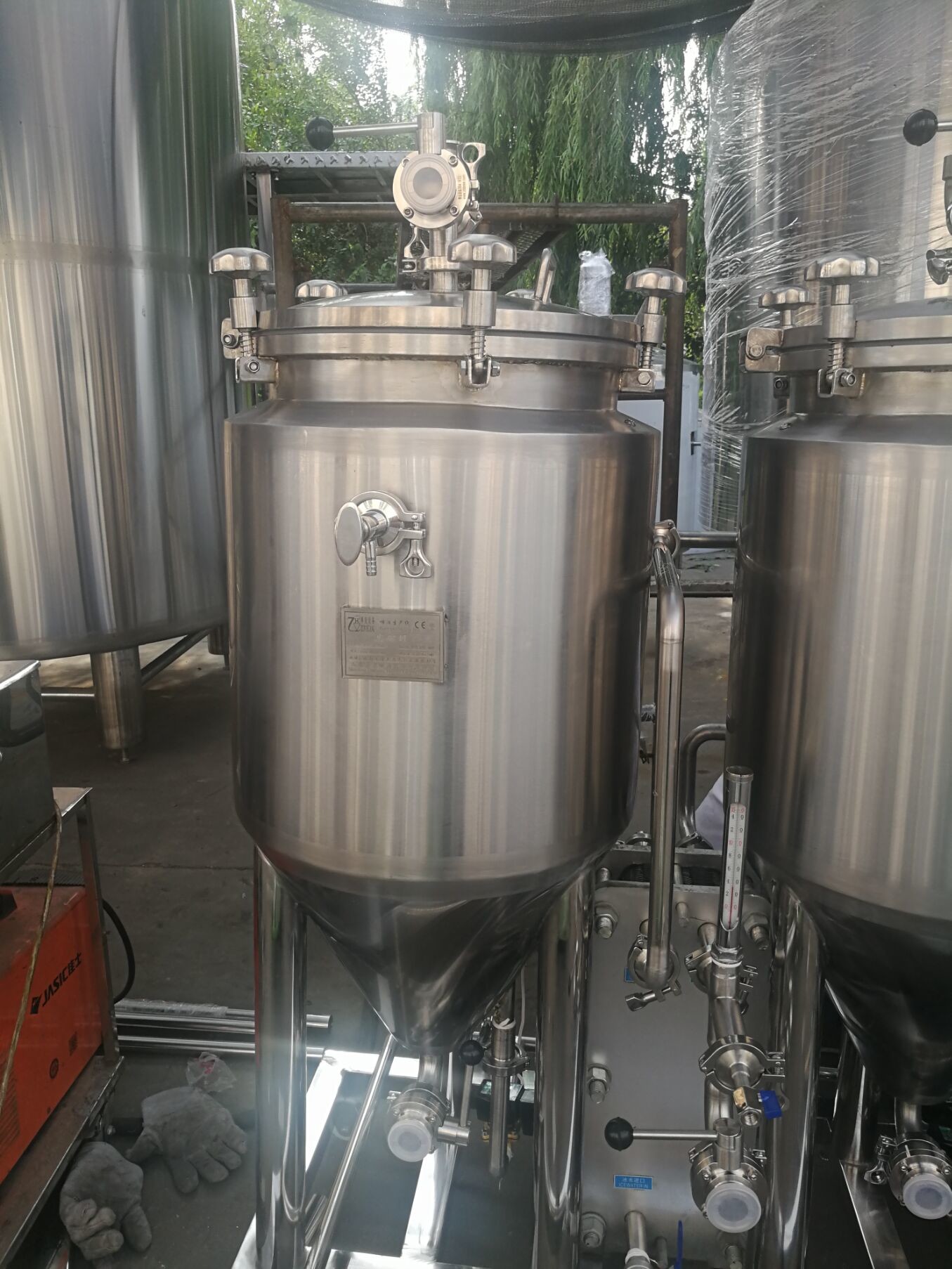

3. Fermentation System
1. Effective volume: 50L;SUS 304
2. Inner thickness 2.5mm, outer 1.5mm,
3. Polishing precision 0.4um,
4. Insulation material PU foam, Insulation thickness 75mm,
5. Design pressure 0.3mpa, use pressure 0.15mpa,
6. Bottom cone design 60°,use to save yeast.
7. With CIP spray ball, drain outlet, Mechanical pressure regulator, pressure gauge, glycol cooling jackets, safety valve, sampling valve, etc.
4. Cooling system
1. Effective volume 100L
2. Inner thickness 2mm, outer 1.5mm
3. Insulation material:PU foam, Insulation thickness 75mm
4. Polishing precision 0.4um.
5. Control system
1. Power Control for Mash System,
2. Digital instrumentation control, can automatically control the mash system, fermentation temperature and pressure,
3. Wort pump, refrigerator, ice water pump,
4. Power Control for Cooling System,
5. Fermentation tank temperature control: Temperature, pressure control accuracy was ± 0.1℃, ± 0.01MPa;
6. In the control cabinet can be freely converted automatic and manual control.
If you need more details, please click the message box below and leave a message, I will reply you as soon as possible.
Thanks and waiting for your feedback.
