50L home brewing equipment , homebrew , mini brewery

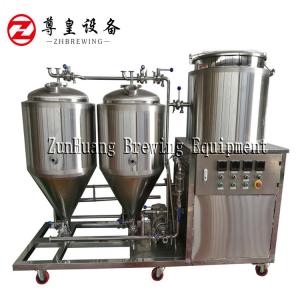

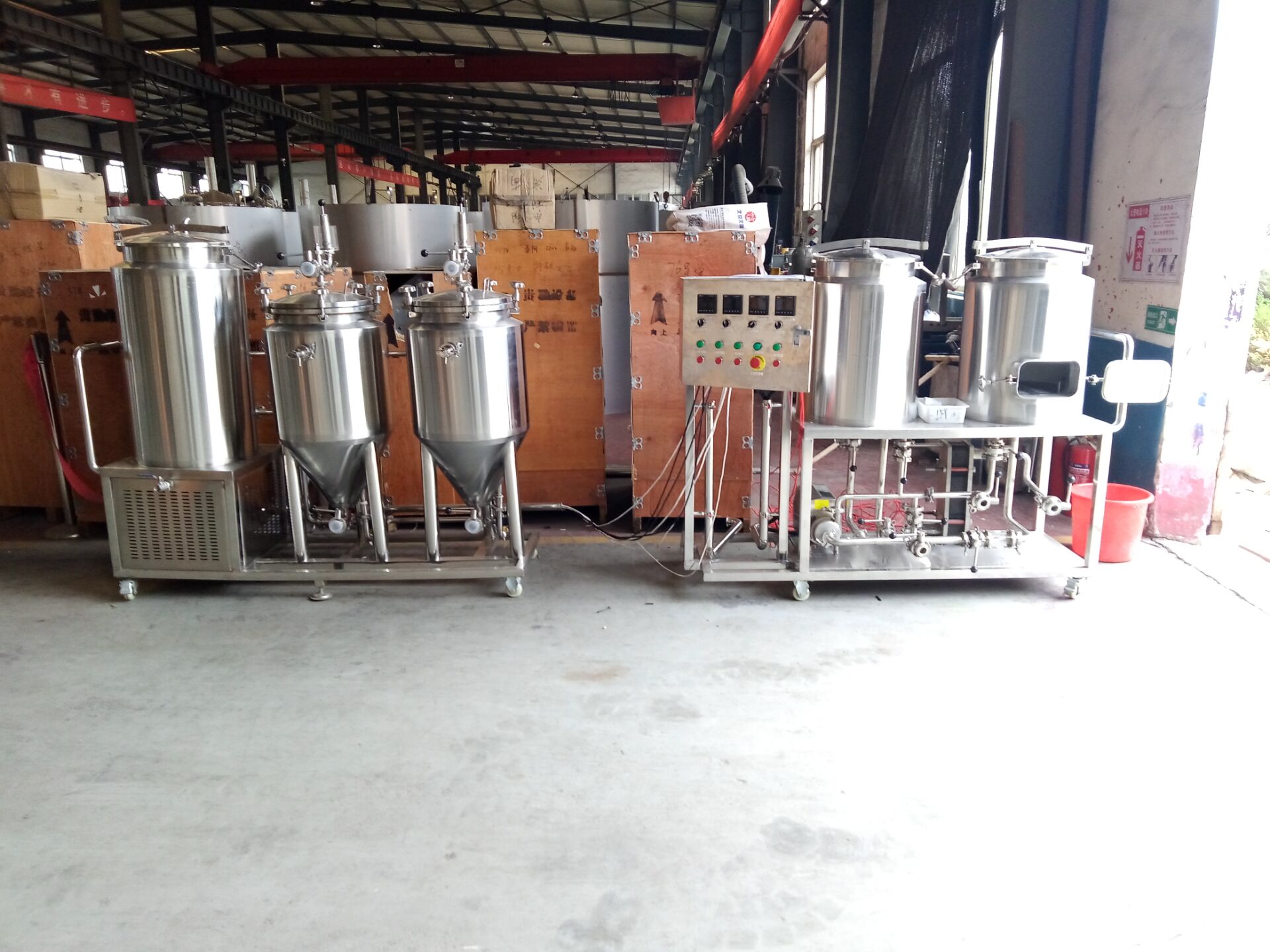

The complete 50L home brewing equipment includes: 50L brewhouse (can be mashing, lauter, boiling), wort pump, 2-12pcs 50L fermenters, controller, glycol tank and chiller (on the back of controller), besides, we will send a small miller for you.
Equipment Sturcture:
Mash lauter tank with 3mm SUS304 interior shell, 2B finished surface, top with quick-open ordinary pressure manway, 15°cone bottom with outlet port. Self-made filter sieve plate, side out manhole, Middle of the tank with PT100 temperature probe, thickness of rock wool is 50mm, Exterior shell with 2mm SUS 304, drawbench finished surface. Kettle whirlpool tun with 3mm SUS304 interior shell, 2B finished surface, top with quick-open ordinary pressure manway, 15°cone bottom with blow-down and side with outlet. Middle of the tank with electrical heated tube and temperature probe, thickness of rock wool is 50mm, Exterior shell with 2mm SUS 304, drawbench finished surface.
Control box used to control pump, show and control mash and kettle temperature, removable plate heat exchange, wort oxygen fixture which will show outlet temperature. All equipment fixed on mobile platform.
Equipment system
1. Malt Milling System
The malt is the most expensive, therefore a good fit for your malt mill can reduce 5% malt waste.
2. Mash System
Zunhuang series mash system consist of 1 vessel mash system, 2 vessels mash system, 3 vessels and other design, mainly includes mash tank, brew kettle, lauter tank and whirlpool.
3. Fermentation System
Zunhuang company are generally use 12 days as fermentation to configured fermentor,high quality fermentation, fermented good quality beer,the right amount of good commodity market with a bright future.
4. CIP Cleaning System
CIP cleaning system is consist of alkali tank, acid tank, sterilization water tank, disinfection tank, sanitary pump.
5. Cooling System
Cooling system mainly includes Ice water tank, glycol water tank, plate heat exchanger, refrigeration unit, cooling pipelines and vales and control system.
6. Control System
Control system is the core part in the whole beer production line, including: malt mash, mash, fermenting, cooling, temperature control, pressure control and other auxiliary. It can achieve the part control or whole PLC automatic control.
Brewing system configuration
| Fermentation System |
| Capacity | Same/double capacity of brewhouse |
| Cooling method | Glycol cooling |
| Design | Dish top, 60~72° bottom cone |
| Exterior | Stainless steel 304, thickness 2mm |
| Interior | Stainless steel 304, thickness 3mm |
| Insulation | polyurethane, thickness 80mm |
| Cleaning | CIP arm, with 360° spray ball |
| Temperature | High accuracy temperature sensor |
| Pressure | Pressure gauge/pressure relief valve, safety valve |
| Dry hops adding port on top Rotating beer outlet with butterfly valve Wort inlet/drainage with butterfly valve Stainless steel dimple jacket on cone and side Stainless steel side manway Stainless steel heavy duty supporting legs |
Equipment details
Our Services
Engineering:before buyer confirm the order,we support sending the necessary brewery equipment layout,3D brewery drawing,beer brewing flow chart and tank drawing let you reference.
After-sales
We guarantee the main system 5 years warranty,the electrical component 1 year warranty,during the warranty time ,if have parts broken we will change new one for free or send engineer to maintain(except the worker wrong operation).
Company Information
FAQ
Q1: What equipment can you provide?
A1: We are a professional craft beer, fruit wine equipment manufacturer, we could provide home brewing equipment; hotel, restaurant, pub brewing equipment; microbrewery equipment and winery equipment, we have serviced more than 60 countries and areas, we could provide turkey project and dispatch our worker to install equipment overseas.
Q2: What model number can you provide?
A2: We have many type, for example ZH- 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L and so on. If you have other size, our engineer will specially design the equipment for you, we have professional engineers team to service for you.
Q3: What heating type can you provide?
A3: We have direct fire, electrical tube, electrical steam, oil steam, gas steam heating types, you can consider which one is convenient for you.
Q4: Could you tell me what equipment do you need?
If you are interested in our equipment, please don't hesitate and welcome you contact me, write your equipment demands, and send me a message, I will reply you quickly.
