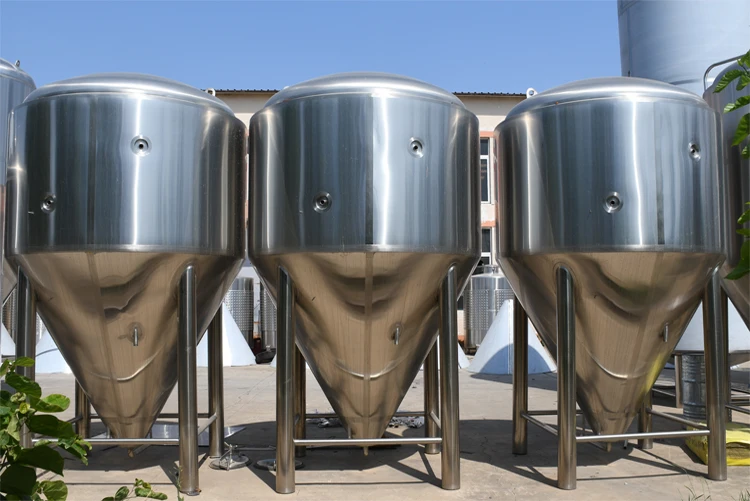

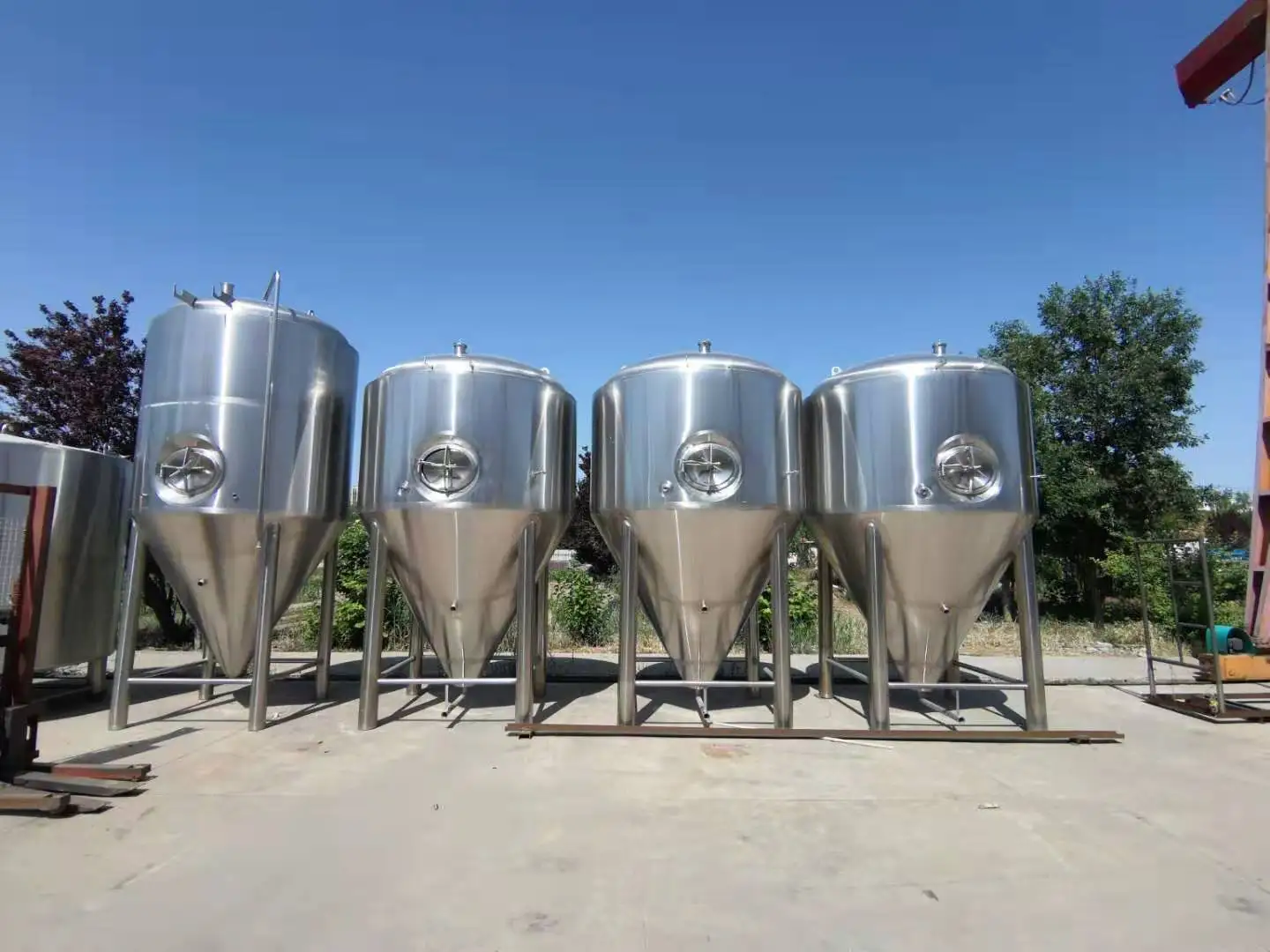

1.Effective volume:500L, dish head and cylinder tank with four legs;
2.Inside surface: SS304, TH:3mm,
Outside surface: SUS304, TH:2mm,
Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.
3.Manhole: side manhole on cylinder.
4.Design pressure 3bar, Working pressure: 1.5-2.0bar;
5.Bottom design: 60 degree cone for easy to exist yeast.
6.Cooling method: Dimple cooling jacket, Cooling area:3.6.
7.Cleaning system: Fixed-round rotary cleaning ball.
8.Control system: PT100, temperature control;
9.Option:Dry hops adding device on the top and Carbination stone.
10.With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, etc.

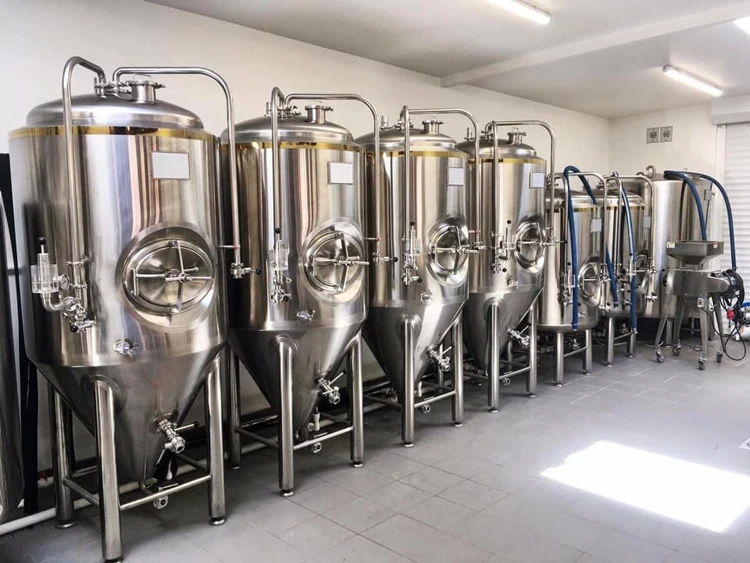

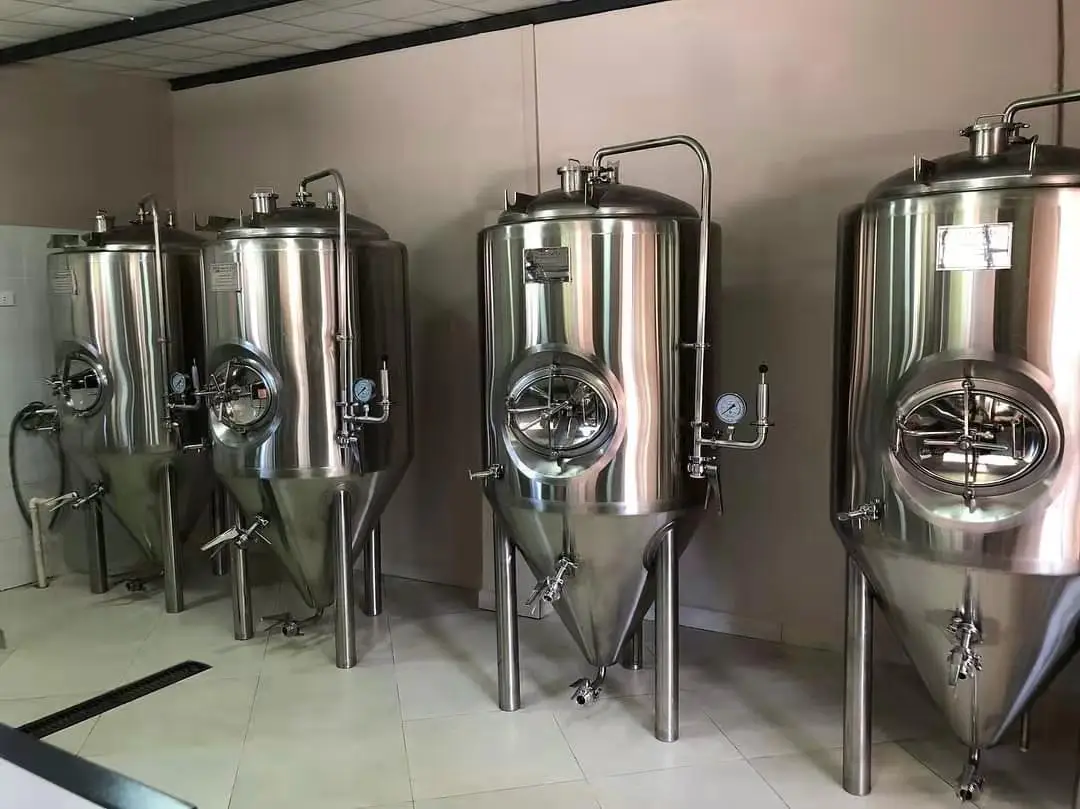

Fermentation system:
1.The inner of the fermentation tank are adopted 304 stainless steel. Use polyurethane to keep warm. The outside scarfskin is according to the customer’s requirement.You can choose stainless steel polishing, carbon steel, spray finishing and so on.
2.Adopted the international standard of fermentation technology, diverse methods to control the temperature. The inner surface of the tank is mirror-polished. The standard is≤0.8um ≤0.6um ≤0.2um. Completely meet the demand of PLC and sterilize system.
3.The cooling jacket can achieve all countries’ standard, supply Miller, arch, corrugated plate and so on. Meet all kinds of demand of cooling technology of coolant and pressure.
Certifications

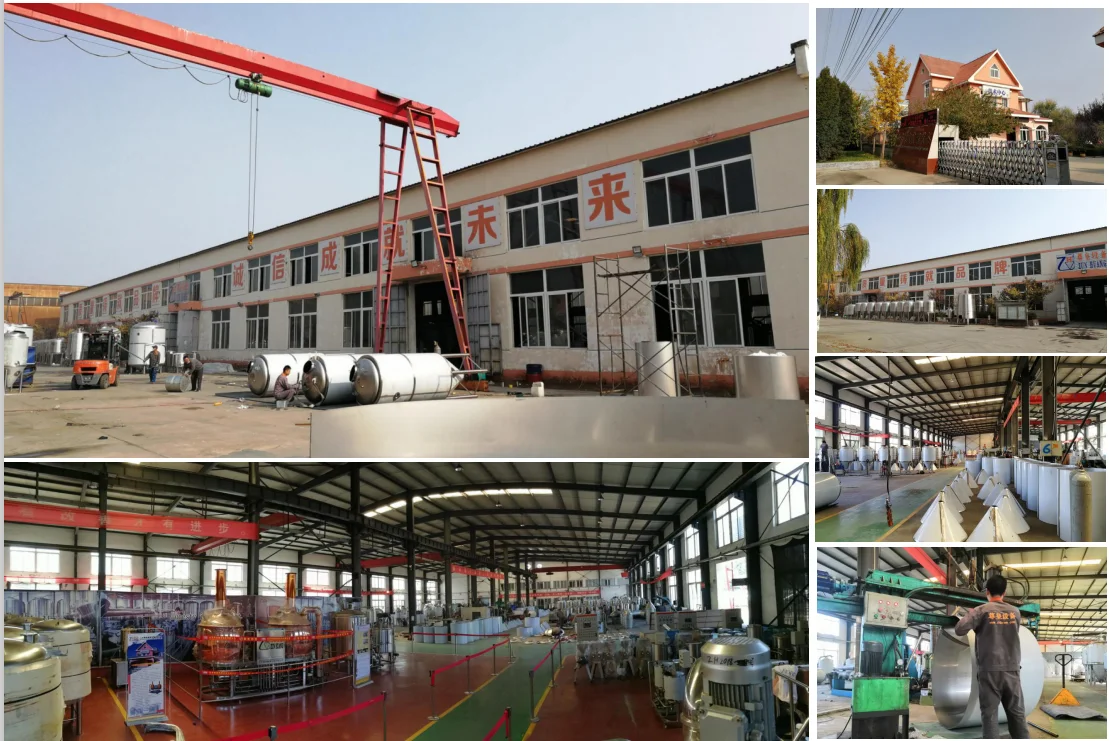

Internationally recognized: Zunhuang technology has been internationally recognized,
and achieved ISO9001: 2008 international quality system certification, import and export EU CE certification;
accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.
