AISI304 Beer Conical Cooling Tank Pressure Unitank, CE ISO Certifitation

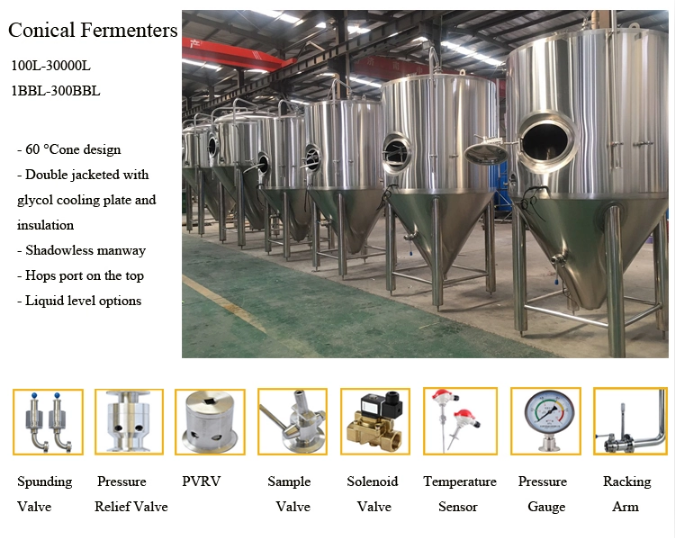

* Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included

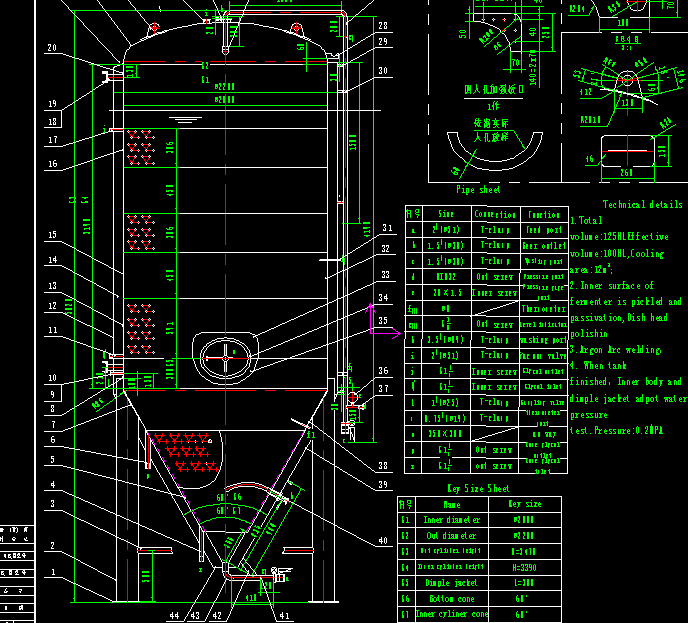

Fermenter drawing:
Accessories:
Technical parameter in fermentation system:
| Production capacity | 500 | 1000 | 2000 | 5000 | 10000 | 20000 |
| Volume Effective/Total | 500/660 | 1000/1330 | 2000/2660 | 5000/6600 | 10000/ 13300 | 20000/ 26600 |
| Inner shell diameter(mm) | 1400 | 1600 | 2000 | 2800 | 3000 | 3500 |
| Cooling area m2 | 2.2 | 4.4 | 8.7 | 14 | 25 | 48 |
| Working pressure | 0.14 | 0.14 | 0.14 | 0.14 | 0.14 | 0.14 |
| Cooling method | Dimple plate jacket | Dimple plate jacket | Dimple plate jacket | Dimple plate jacket | Dimple plate jacket | Dimple plate jacket |
| Conical angle | 60 | 60 | 60 | 78/60 | 78/60 | 78/60 |
Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.

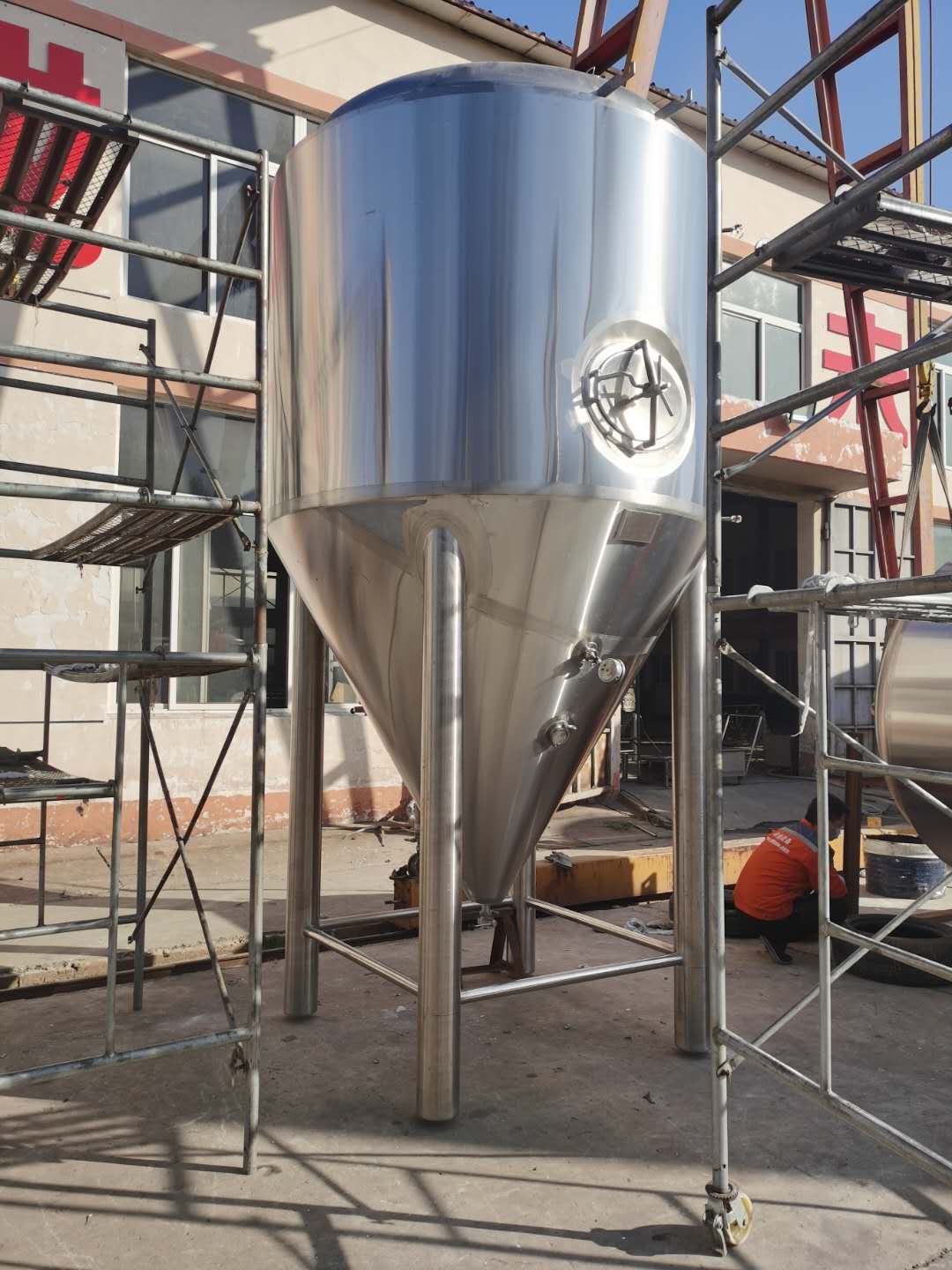

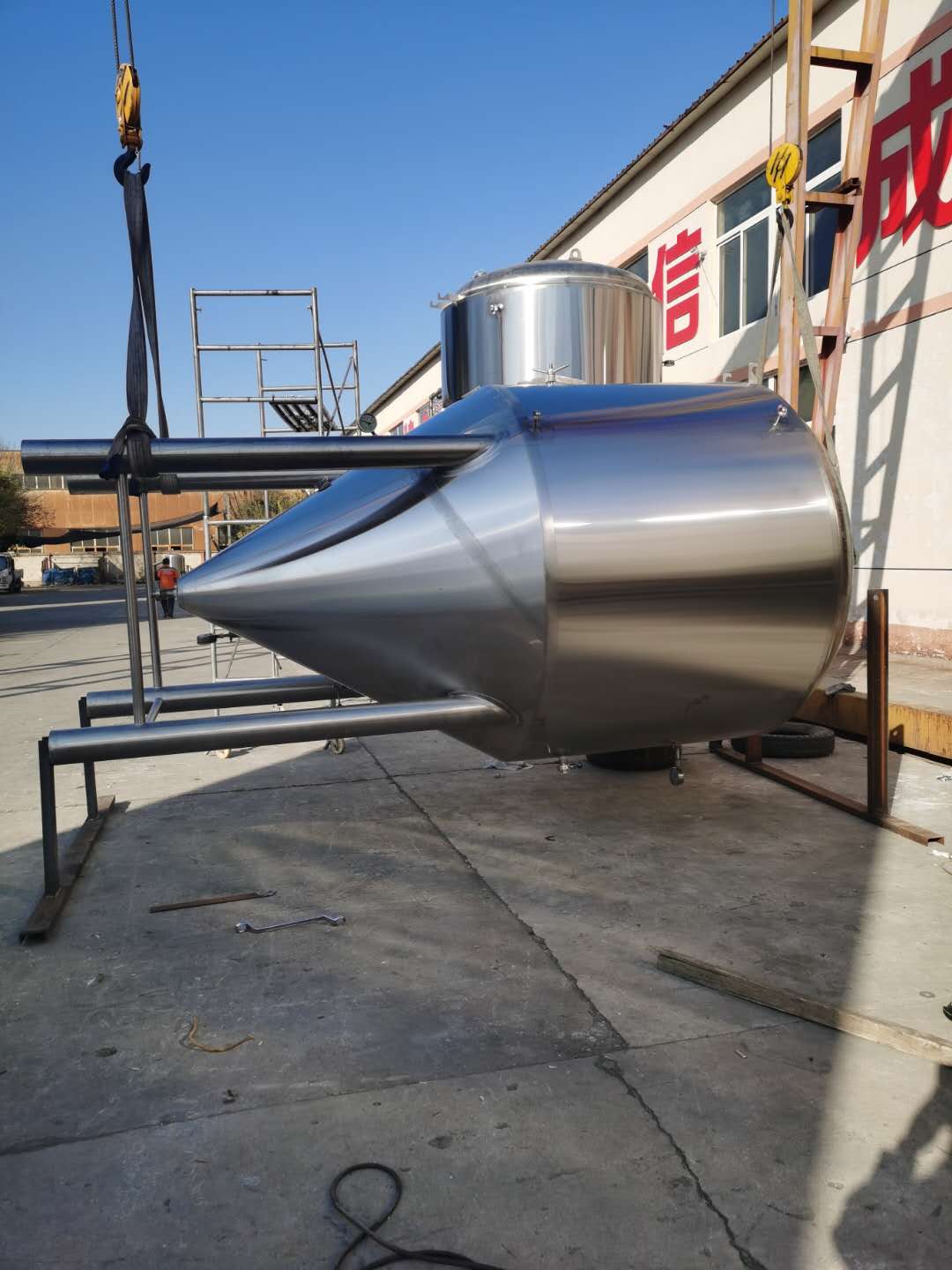

Our factory:
Shandong Zhunhuang Brewing Equipment Co., Ltd has many years experience of fermentation tank and bright beer tank production and installation.Our products can be based on the customer's different requirements to design different technology,and we can produce the products in accordance with the American technology and Germany technology to meet the customer's needs. The tank inner is made of high quality stainless steel 304. We use stainless steel polishing, matte finish, electroplating, copper and other forms for product outer according to customers' requirements. Our products are beautiful in appearance and durable in use. The manhole, CIP cleaning ball, thermometer interface, sampling port,etc. are fully prepared, fermenters design at 60 degrees shape design of the small cone bottom can effectively improve the precipitation of brewer's yeast. Also, it' s adopts the international beer standardization brewing production technology, real-time online data detection and realize remote monitoring.
